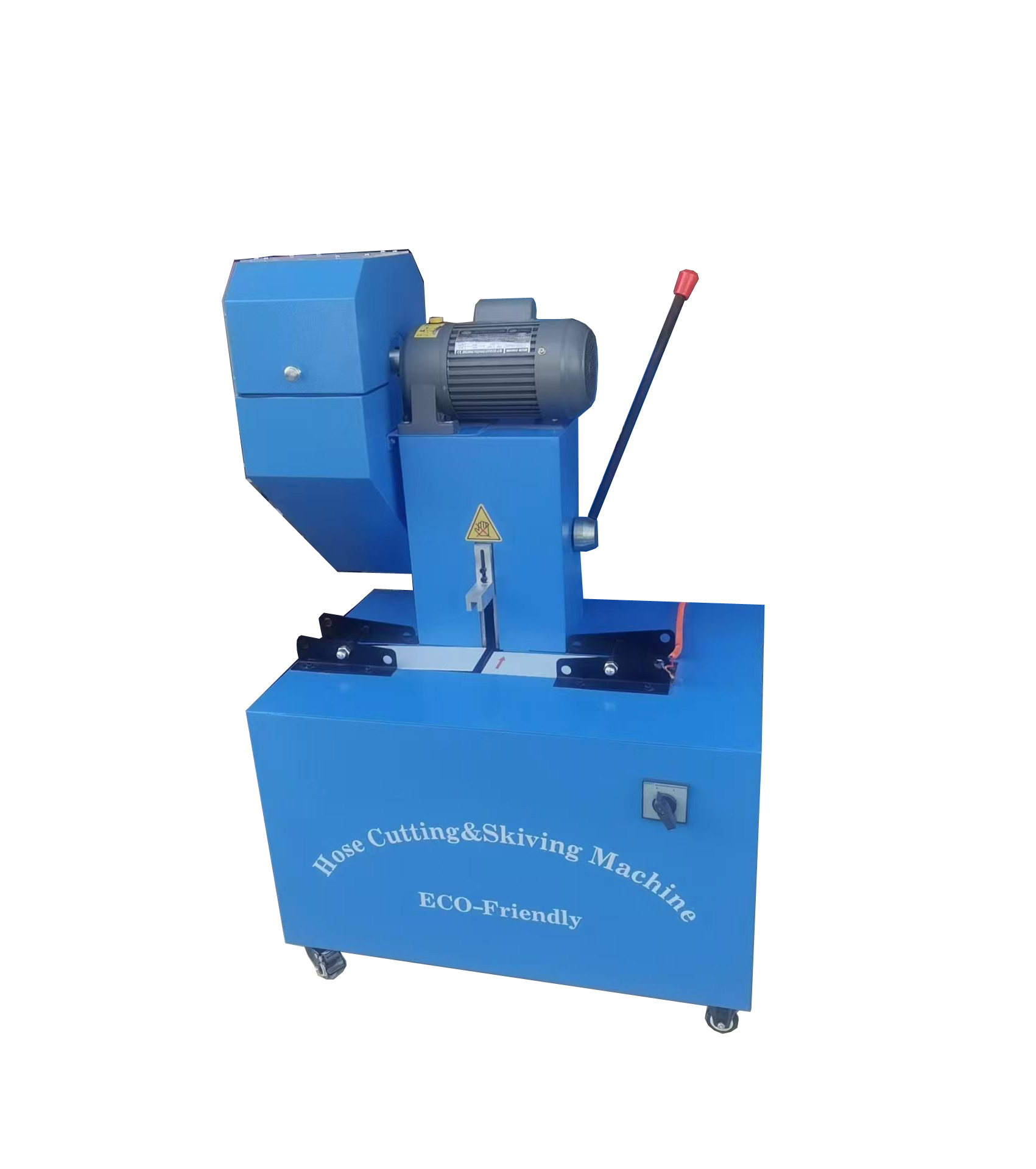

Hose Cutting and Skiving Machine

This product combines foreign advanced cutting technology to develop new products. The core slice of the product uses imported special slice, dust-free pipe cutting machine, which has the characteristics of high rigidity, small thermal deformation, fast pipe cutting, low wear and no chipping. The balanced feed system is used to make the cutting force more uniform. The unique cushioning mechanism makes the cutting process smoother and safer. The product is suitable for cutting all kinds of steel wire braided hoses, wire wound hoses, cloth pipes, cotton pipes, etc. in the range of 6-51mm in diameter. It is an ideal matching equipment for hose repair and manufacturer.

After-sales Service:within 3 years

REQUEST A QUOTE
Features and Characteristics
  • Cutting Range:6~51mm(ID of hoses)

  • Cutting Blade diameter:350mm*2.8mm

  • Cutting Motor Rpm:2850 Rpm

  • Cutting Power:380v/3KW;220V/4KW

  • Weight :145 kgs/set

  • Helium Leak Testing is available on metal hoses

  • Skiving Range:6mm~51mm(ID of hose)

  • Skiving Motor Rpm:190 Rpm

  • Skiving Power:400W

  • Working voltage:380/220v,50HZ
